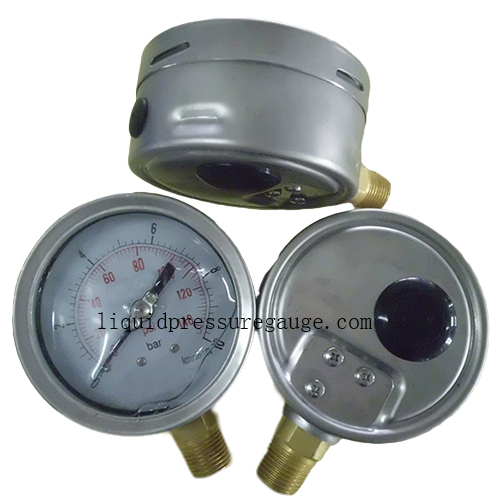

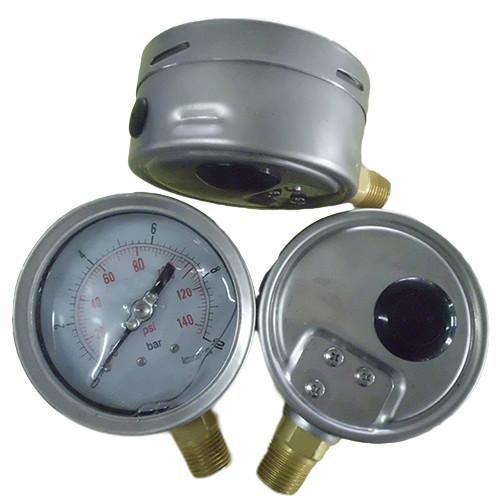

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof

Model Number : YN-100(0-140psi)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Product Name : liquid filled Pressure gauge

Face dia : 4"

Case : Unpolished Stainless steel

Connection : 3/8", 1/2" NPT/BSP/BSPT or made according to customers' request

Explosion-proof : With explosion-proof hole on the back of the case

Setting : Zero adjustable pointer

Liquid filled : glycerine, silicone oil

Mount : Lower mount

Pointer : adjustable pointer

Range : Vacuum, compound, 15,000 psi

Accuracy : 1.6%

Contact Now

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof

Suitable for the hydraulic system,air dryer, compressor,pump,automation equipment,agricultural machinery,paper making,the gas and liquid pressure casting equipment and marine areas. The measuring range is 0-10 bar.

Features:

- With explosion-proof hold on the back of stainless steel case

- Stainless steel case

- Brass internal

- Zero point adjustment setting

- Bayonet case

- Range:0-140 psi

- Dial: 4"

- 1/2 NPT lower mount

Product name	bayonet pressure gauge
Application	It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia	4"
Case	stainless steel
Funcation	with explosion-proof hole on the back of the stainless steel case
Bayonet	stainless steel
Connetion & socket:	brass
Movement	brass
Pointer and dial	aluminum
Window	safety glass
Liquid	glycerine, silicone oil
Range	Vacuum, compound, 0-15,000 psi
Mount	lower mount
Accuracy	±1.6%
Opitional 1	With flange
Opitional 2	with U-clamp
