4" Liquid filled Pressure Gauge,glycerine, 0-2000 psi ,lower mount, 1/2 NPT, stainless steel case and brass internal

Product Categories

Pressure Gauges [141]
Differential Pressure Transmitter [9]
Thermometer and Temperature Gauges [39]
Mini Connector Thermocouple [8]
Manual Cable Cutters [18]
Wire Crimping Tool [17]
Instrument Manifold Valve [38]
Terminal Block [12]
Ball Valve [1]

Yueqing Jintu Trading Co.,Ltd

Contact Now

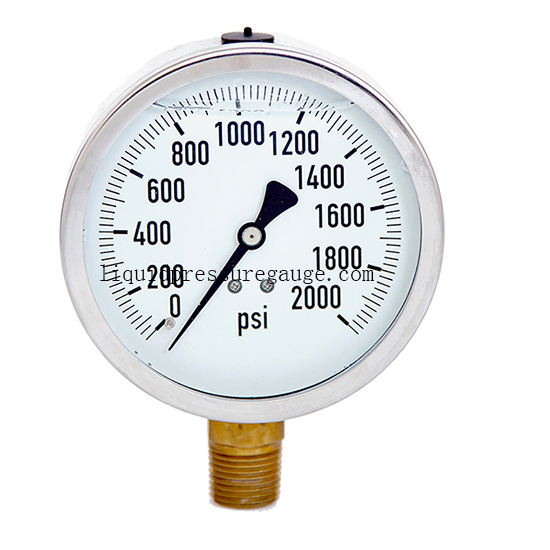

4" Liquid filled Pressure Gauge,glycerine, 0-2000 psi ,lower mount, 1/2 NPT, stainless steel case and brass internal

Model Number : YN-100 ( 0-2000 psi )

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 400,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Product Name : liquid filled Pressure gauge

Connection : 3/8", 1/2" NPT/BSP/BSPT or made according to customers' request

Liquid filled : glycerine or silicone oil

Mount : Lower mount

Case : stainless steel

Connetion & socket : Brass

Movement : brass

Range : 0-15,000 psi

Contact Now

4" Liquid filled Pressure Gauge,glycerine, 0-2000 psi ,lower mount, 1/2 NPT, stainless steel case and brass internal

GELYCERIN FILLING WITH 4" CLEAR DIAL enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; Clear dial with dual two colors scales(bar/psi) make it easy to read.

Features:

- Range: 0-2000 psi

- Arruracy:±1.6%

- Single scale

- Dial: 4"

- Crimp on bezel

- 1/2 NPT lower mount

Product name	Liquid filled pressure gauge
Application	It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia	4", 6"
Case	stainless steel
Ring	stainless steel
Connetion & socket:	brass
Movement	brass
Pointer and dial	aluminum
Window	safety glass
Liquid	glycerine or silicone oil
Range	Vacuum, compound, 0-15,000 psi
Mount	lower mount
Accuracy	±1.6%
Opitional 1	With flange
Opitional 2	U-clamp

4" Liquid filled Pressure Gauge,glycerine, 0-2000 psi ,lower mount, 1/2 NPT, stainless steel case and brass internal
