Bimetallic Stemmed 80MM 600C Helical Bimetallic Thermometer Glass Window

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Model Number : JT-T-13

Place of Origin : China

MOQ : 1000 pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 20-40 works day

Packaging Details : inner box

Product name : bi-metal thermometer

Case Material : steel

Thermowell material : brass

lens : glass

Mount : back mount

Face dia : 50mm, 60mm, 80mm, 100mm

Bezel : steel

Range : -50-600℃

Contact Now

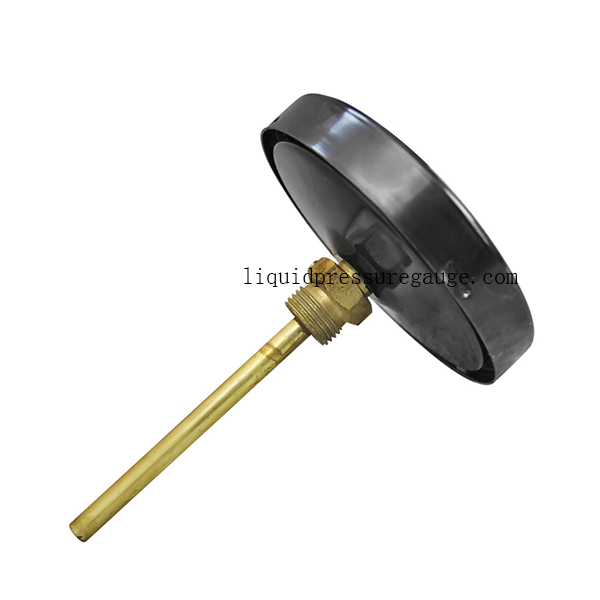

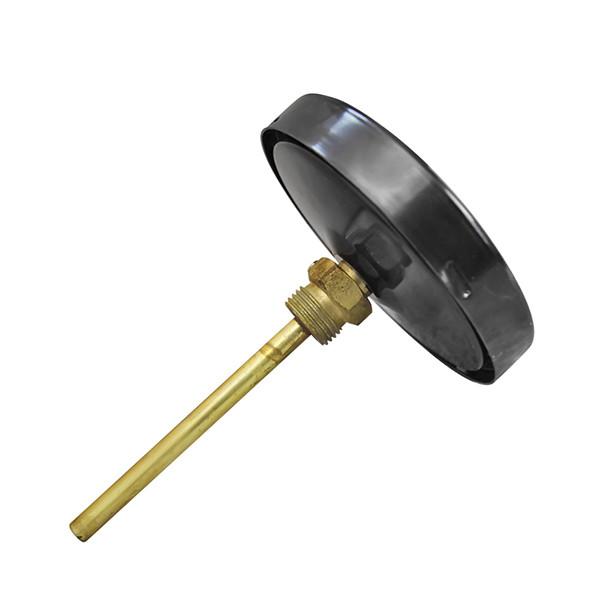

Bi-metal thermometer with thermowell, black painted steel case, bottom connection with brass thermowell, 0-120℃

Application:

This bimetal thermometer can be used as water temperature gauge,oil temperature sensor. it can be installed easily.

Features:

- 4 inch Dial

- 4 inch length of stem

- Steel case

- Steel bayonet ring

- Glass window

- Brass stem

- Brass thermowell

- Range: 0-120℃

- Back mount

- 1/2 BSP

- Opitional: 3 inch dial

Product name	Bimetal thermometer
Nominal size(mm)	100mm
Range	-50-600℃
Accuracy	2.5%
Case material	black painted steel case
Bezel	black painted steel
Lens	Glass
Stem	copper alloy
Stem diameter	6mm, 8mm, 10mm or made as request
Stem length	200 mm or made as request
Pointer	black painted aluminum
Movement	bimetallic coil
Inner	copper alloy
Connection	1/2 NPT, BSP, BSPT or made as request
Mount	Lower mount

Bimetallic Stemmed 80MM 600C Helical Bimetallic Thermometer Glass Window
